ITO FTO Conductive Glass With Bus Bar Anti-Reflective Coating

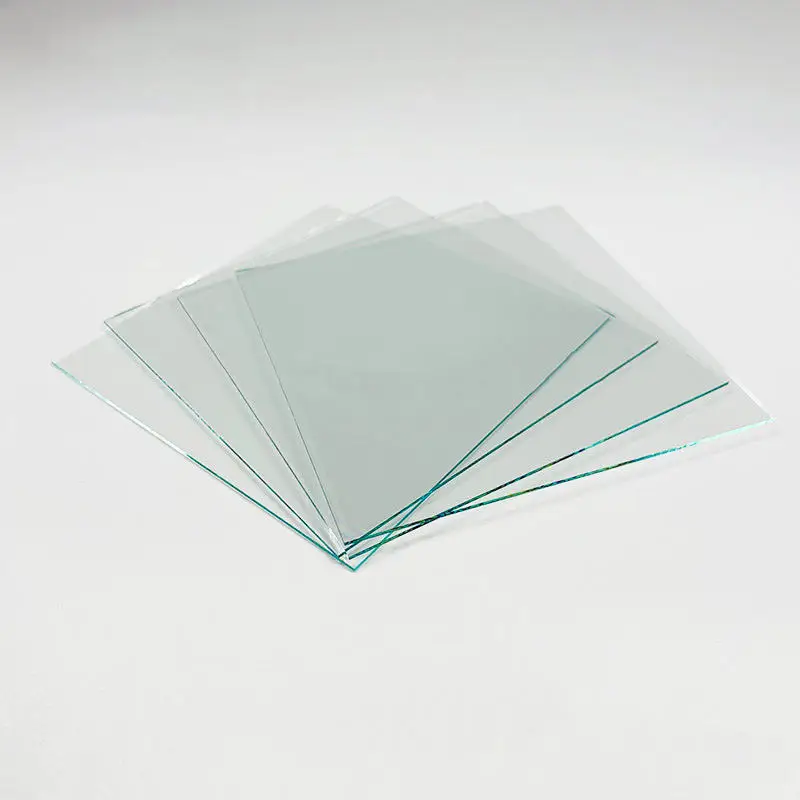

ITO Coated Conductive Glass
ITO conductive glass is made of silicon dioxide (SiO2) and indium tin oxide (commonly known as ITO) film plated by magnetron sputtering method on the basis of soda-lime or borosilicate glass.
FTO conductive glass
FTO conductive glass is fluorine-doped SnO2 transparent conductive glass (SnO2: F), referred to as FTO.
Send Inquiry
Description
Technical Parameters

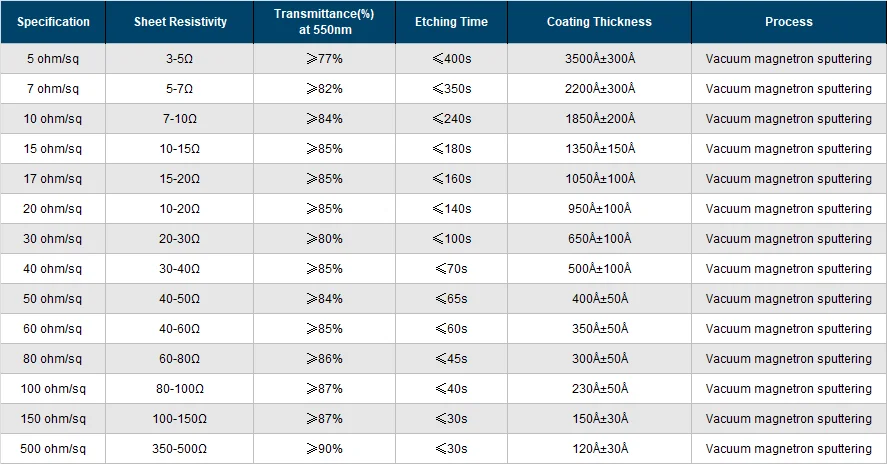

ITO glass parameters
|
Product Name:
|
ITO coated glass substrate, ITO conductive glass slide
|
|
Standard Size
(Length × width): |
1" x 3" (25.4x76.2 mm), 1" x 1" (25.4x25.4 mm),
10 x 10 mm, 50 x 50 mm, 100 x 100 mm, 300 x 300 mm (Or specific size can be customized) |
|
Standard Thickness:
|
0.5mm, 0.7mm, 1.1mm, 2.0mm or 3.0mm (other thickness can be customized.)
|
|
Resistance :
|
4~5 ohm/sq, 6~8 ohm/sq,10~15 ohm/sq,20~30 ohm/sq, 30~40 ohm/sq, 60~80 ohm/sq, 80~100 ohm/sq, 300~500 ohm/sq, or others
|
|
Transmittance:
|
≥87% (at 550nm wave length)
|
|
ITO thin Film thickness:
|
185nm ( 6~8 ohm/sq);
135nm ( 10~15 ohm/sq) |
|
Glass substrate
|
soda-lime glass
|
|
Application:
|
Mobile phone screens, PDAs, calculators, electronic watches, electromagnetic shielding, photocatalysis, solar cells, biological
experiments, major university laboratories and other new scientific and technological fields; |
How to use and store conductive glass
2. Handle with care, not collide with other fixtures and machines;
3. If you store for a long time, you must pay attention to moisture, the humidity should be below 65%, so as not to affect the resistance and transmittance of the glass.
4. The glass should be placed vertically, and the stacking between the glasses should not exceed two layers.
.
