ITO Coated Body Scale Glass Panel
Description
Technical Parameters
Why do we coat ITO on the Body Scale Glass Panel?

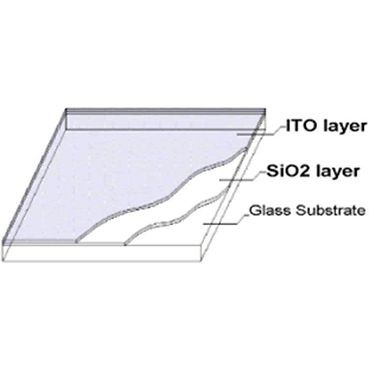

ITO (Indium Tin Oxide) Coated Body Scale Glass Panel refers to a glass panel used in body scales that is coated with a thin layer of Indium Tin Oxide. ITO is a transparent conductive material commonly used in various electronic devices, including touchscreens and display panels.
In the context of a body scale, the ITO coating on the glass panel serves multiple purposes. Firstly, it provides a conductive surface that enables the measurement of electrical signals when a person stands on the scale. These signals are then used to determine the person's weight and other body composition metrics.
Secondly, the ITO coating allows for the transmission of light. This enables the display beneath the glass panel to be visible to the user. Many body scales feature digital displays or indicators that show the weight reading or other relevant information.
What data can be valued by ITO Coating Body Scale Glass?
Weight, BMI(body mass index), body fat, muscle mass, water, fat-free body weight, bone mass, basal metabolism, protein rate, visceral fat index, body age, body type, body score.
MAXIMUM CAPACITY: 180 kg/396lb
|
Technical Information And Specifications Of Ito Coated Soda Lime Glass |
|||
|
Specification (Ohm/sq) |
Sheet Resistance (Ohm/sq) |
Visible Light Transmittance (%)* |
Thickness of ITO Film |
|
500 |
≤500 |
≥90 |
120ű 30Š|
|
150 |
≤150 |
≥87. 0 |
150ű 30Š|
|
125 |
≤125 |
≥87. 0 |
200ű30Š|
|
100 |
≤100 |
≥87. 0 |
230ű 50Š|
|
80 |
≤80 |
≥86. 0 |
300ű5oŠ|
|
60 |
≤60 |
≥85. 0 |
350ű 50Š|
|
50 |
≤50 |
≥84. 0 |
400ű 50Š|
|
40 |
≤40 |
≥85. 0 |
500ű 100Š|
|
30 |
≤30 |
≥80. 0 |
650ű 100Š|
|
20 |
≤20 |
≥85. 0 |
950ű 100Š|
|
15 |
≤15 |
≥85. 0 |
1350ű 150Š|
|
10 |
≤10 |
≥84. 0 |
1850ű 200Š|
|
6 |
≤7 |
≥80. 0 |
2200ű 300Š|
|
5 |
≤5 |
≥77. 0 |
3500ű 300Š|
|
* Transmission will vary slightly depending on thickness of the glass substrate |
|||
Here are some of the application scenarios for ITO glass:
- Liquid crystal displays: ITO glass serves as the transparent electrode of the liquid crystal display, allowing for the adjustment of the direction of liquid crystal molecules and the realization of the display effect.
- Touch screens: ITO glass is used as the sensing electrode of the touch screen, allowing for sensing and reaction to touch points and enabling touch control.
- Solar panels: ITO glass serves as the transparent electrode of the solar panel, allowing for the transmission of light and the conduction of electrons, thereby enabling the collection and conversion of solar energy.
- Optoelectronic devices: ITO glass is used as the electrode of optoelectronic devices, allowing for the induction of light and the conduction of electrons, enabling photoelectric conversion.
Edge Treatment
Working Environment Overview
Factory Overview & Customer Visit
Company Profile
Customer Visit
FAQ
Q: Should glass be tempered and what's the difference between Chemical tempered and Physical tempered?
To small size/thickness less than 3.2mm,we recommend chemical tempered.(surface toughen by 6-7H).
To bigger size/thickness above 3.2mm, we recommend physical tempered.
Base on thermal tempered, the fragmentation test standard / partical sizes & quantity could be set base on different thickness.
The glass flatness could be asked after tempering.
Q: What kind of glass will be used?
LightingWe usually use clear / ultra clear float glass for production, depends on customer's need.
Cover glassWe usually use AGC(Dragontail) for production, but also available in gorilla/NEG etc. base on customer's need
Furniture glass We usually use high quality flat/bending glass
Q. Do you accept small order?
Any order quantity is welcome. But some type of products are high cost that not suitable for small order.
Q: Can I get samples and check your Quality?
Yes. Contect our sales with detailed Requirements /Drawings, or just an idea or a sketch. We will deliver the sample to you.
Q: What should I provide to get a quotation?
1. The kind of glass, thickness and size.
2. Drawing of the glass
3. Requirements in details.
4. Order quantity.
5. Others you think is necessary
6. Process balance payment and advise us your opinion on safe delivery.
7. Enjoy your order.
Q: Where is your company? Which port near you? Can I pay a visit?
Welcome. Our factories are located in Guangdong China, near to Shenzhen and Guangzhou port. Please let us know if you want to come, we will advise route guidance in details.
Hot Tags: ito coated body scale glass panel, China ito coated body scale glass panel manufacturers, suppliers, ITO Glass, ITO Coated Glass, ITO Conductive Glass, ito patterned glass, indium tin oxide coated glass, Indium Tin Oxide Glass
Delivery & Payment
Packaging:
Step 1: PE film coating(Normally) / paper(For seashipment prevent wet).
Step 2: Kraft paper for fixation.
Step 3: Carton for glass safety protection.
Step 4: Custom make plywood case with hinge for custom(fumigation + convenient inspection) convenience.
Step 5: Packing strap for further fixation.
Port
Shenzhen or Hongkong
